Sansui AU 9500 – integrato

Titolo: Sansui AU 9500

L’AU 9500 è considerato il modello che ha stabilito la reputazione del marchio Sansui ed è considerato “The best of Sansui”, con una costruzione di riferimento assoluto a livello mondiale.

The highest-class Integrated Amplifier which the SANSUI completed based on the chosen part making full use of the highest circuitry technology.



Oggetto raro – Rare object

Quotazione













Sansui AU 9500

Quotazione: vista la rarità del prodotto le quotazioni vanno da

Eur 500 a 1.000  (esemplare in perfette condizioni)





Scarica anche la prova in PDF da:











L’AU 9500 è considerato il modello che ha stabilito la reputazione del marchio Sansui ed è considerato “The best of Sansui”, con una costruzione di riferimento assoluto a livello mondiale.

Prodotto nel 1972 da Mr. Kosaku Kikuchi con la filosofia progettuale che diceva: “Let the products speak themselves“.









Stato solido da 85 watt per canale dalla elevatissima trasparenza, capacità dinamica e dal suono fortemente arioso, lo rendeva già allora un apparecchio modernissimo. Possibilità di separare la sezione pre da quella finale. Eccellente sezione phono.

Molto ricercato sul mercato dell’usato e del vintage.













The highest-class Integrated Amplifier which the SANSUI completed based on the chosen part making full use of the highest circuitry technology.

The stable whole page hardwired-connection OCL pure complementary circuit is adopted the fully examined component parts and by making full use of a technical expertise. Moreover, by adopting the parallel push-pull circuit which is proud of the Oide power and a low distortion, from 5Hz to 40kHz, the THD, Cross modulation distortion, and Power Band Width from the Koide power to the Oide power also had a margin, and have fully guaranteed 0.1% or less.









A large-sized power transformer and a 4×4,700-micro F mass capacitor are used for a power-source part.
The drive which became independent in the power stage and which adopted the +-2 power-source scheme, raised stability, and had the allowance of a power transistor while carrying out the powering is enabled for every channel.
Furthermore, the power stage and the predrive stage are used as another power source, and the predrive stage is made to drive on a voltage higher than the power stage. For this reason, the drive stabilized without being influenced by the load variation is enabled.











The parallel push circuitry which can reduce the collector current of a power transistor to conventional one half. In this circuitry, since only the good fraction of the current characteristic of a transistor can be chosen, the high output which the whole page hardwired-connection OCL pure complementary circuit and the interval pressed down distortion, and was stabilized as for them can be obtained.
Moreover, by considering the differential amplifier which influences the stability of a whole page hardwired connection as the two-step stream composition by the combination of a low-noise transistor, and carrying out a constant current drive, it is designing so that a parallel push-pull operation may be performed ideally.











The three-step hardwired-connection equalizer circuitry of PNP-NPN-PNP is used for an equalizer circuitry.
Furthermore, they are 300mV of maximum permissible inputs by the high voltage supplied from the stable constant-voltage regulated power supply.
Moreover, the RIAA deflection which has influence on a tone quality has also guaranteed the value of ±0.5dB to the RIAA element in 30Hz – 15kHz by the low-noise transistor, little resistor with error, and a capacitor.
The it1 noise generated at the time of a switchpoint switching used – power source, and has solved it by setting base potential of the first rank to 0.









When it becomes an overload, the collector current of an output stage and the driver stage builds the current limiter circuit restricted so that beyond a certain constant value may not flow in the protection of a transistor.
At the time of bads, a power transistor and a speaker are protected with an immediate judgment fuse with the relay which combined the electronic circuitry.
Moreover, since the relay circuit serves as the audio muting, there is no unpleasant pop noise at the time of power activation.











A bass and loud sound have adopted T.T.C. (triple tone control) of only ±5dB and the SANSUI from which an ideal curve is obtained by a 1dB step only ±15dB and inside sound at a 3dB step.
T.T.C. In order that amplifier may secure a high input impedance to the first rank, low-noise FET is used for it and it serves as NF type of the three-step hardwired connection and the two-step hardwired-connection circuitry.









The good exclusive NF type active filter circuit system of the piece of 12dB / oct can be adopted, and, as for a high filter, the low filter can change a cut-off frequency to 12kHz and 6kHz at 25Hz and 50Hz.
There is no variation of the frequency response in a mid range.











Two Phono inputs are carried, and it is designed so that Phono1 may respond to 50kohms, Phono2 may respond to a cartridge and an input impedance may be changed to three steps, 30kohms, 50kohm, and 100kohm.

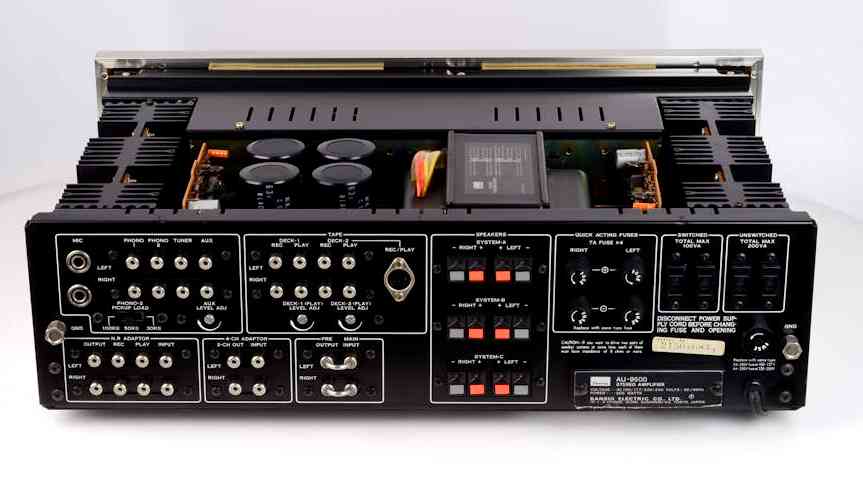

A preamplifier part and a main-amplifier part can be independently used by removing the connector of the rear panel.

Even if it does not use a volume, the muting switch which can decrease all [ of 20dB ] the compasses is carried.

The level adjuster is taking lessons from Deck1, 2, and AUX, and it is made by unification of each input level, and whenever it is a selector changeover, the volume set which it is can be excluded.

Four AC outlets of Switchedx2 and Unswitchedx2 are carried.

All thumbs are the products made from an aluminum Naked.













Specifications   Form Integrated Amplifier Output power Music power (IHF): 260W (4ohm, 1kHz) Effective output (one-side-channel operation): 85W/85W (8ohm, 1kHz) Effective output (both channel operation): 80W+80W (8 ohm, 1kHz) Succession effective output (both channel operation, the rated distortion of 8 ohm, 20Hz – 20kHz): 75W+75W THD (Output power) 0.1% or less Cross modulation distortion 0.1% or less (an Output power, 70Hz:7kHz=4:1, SMPTE) Power Band Width (IHF) 5Hz – 40kHz Frequency characteristic 3Hz – 80kHz, and +0 -1 dB (at the time of main-amplifier and 1W output) Dumping factor 50 (8ohm) Input sensitivity/input impedance (1kHz) Phono1:2.5mV/50kohm Phono2:2.5mV/30kohm, 50kohm, 100kohm [maximum permissible input 300mV, THD 0.5%or less] MIC: 2.5mV / 50kohm Tuner, AUX(level adjustment is possible):100mV /, 50kohm Tape Monitor1, 2 (PIN) (level adjustment is possible):100mV / 50kohm 2 (DIN):100mV of Tape Monitor / 50kohm 4ch, N.R.Adaptor:100mV /, 50kohm An Output voltage/Output load impedance Tape Rec1, 2 (PIN):100mV / 1.5kohm 2 (DIN):30mV of Tape Rec / 70kohm 4ch, N.R.Adaptor:100mV /, 1.5kohm Preamplifier (Output power): 0.8V/1.5kohm [maximum output and THD 0.5%or less] :4.5V Crosstalk (Output power 1kHz) Phono1, 2:50dB or more A hum and a noise (IHF) Phono1, 2:75dB or more Tuner, AUX: 85dB or more Main amplifier: 100dB or more Tone control Bass(Defeat, 150Hz, 300Hz, 600Hz): ±15dB (20Hz), a 3dB step Midrange(Defeat, 750Hz, 1.5kHz, 3kHz): ±5dB (1.5kHz), a 1dB step Treble(Defeat, 6kHz, 3.5kHz, 2kHz): ±15dB (20kHz), a 3dB step Loudness (volume-30dB) 50Hz:+10dB 10kHz:+8dB A low filter 25Hz, 50Hz:-3dB (12 dB/oct) A high filter 12kHz, 6kHz:-3dB (12 dB/oct) The semiconductor used Transistor: 58 FET:2 Diode: 37 Power dissipation 205W (a maximum of 550 VA) Dimensions Width 500x height 140x depth of 347mm Weight 23.3kg
